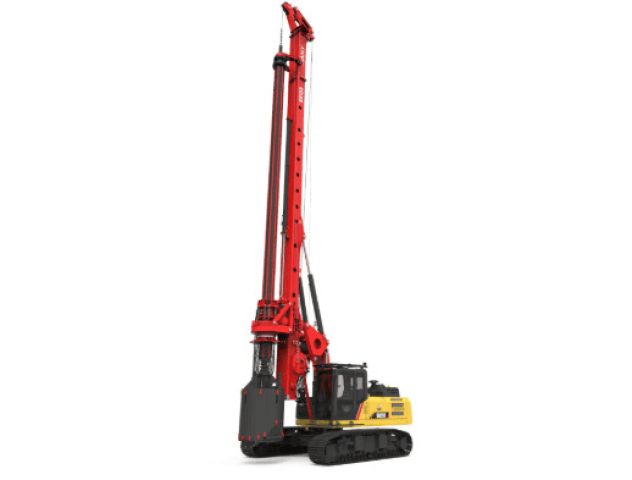

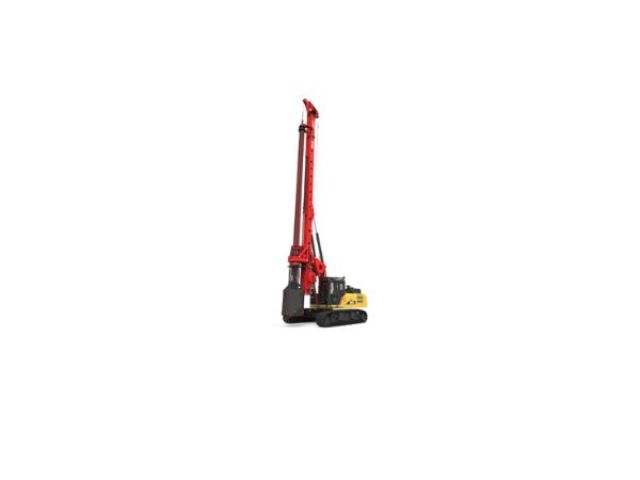

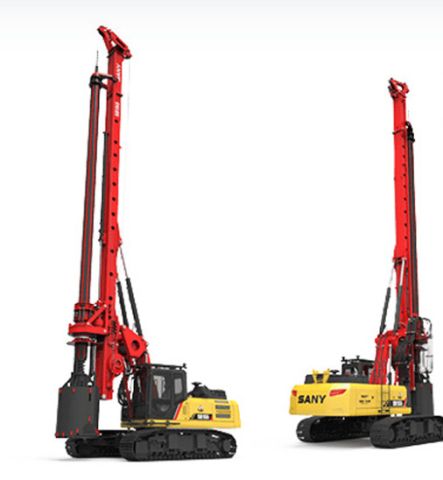

Purchase sany sr155-c10 rotary drilling rig 2025 edition - Abu Al Abyadh | ابو الابيض

Engineered for strength and precision, the SANY SR155-C10 delivers exceptional drilling capability for foundation work. Its powerful rotary drive and hydraulic system guarantee stable and efficient operation. Intelligent control technology enhances accuracy while reducing operational costs. With a rugged frame and fuel-efficient design, it provides long-lasting reliability in heavy-duty construction environments.

Features-

Efficient and Flexible: They are widely used in civil engineering in small dia. and deep borehole construction, high main hoist lifting up and down speed, tall verticality of the finished boreholes, and high working efficiency in civil construction.
Special Chassis: Telescopic large widening chassis designed for rotary drilling rig, roller type large diameter slewing bearing to guarantee the high stability in deep borehole construction.
Economical and Energy-saving: Imported large-displacement EFI engine with solid power, adopts power optimization control technology, adjusts power distribution in real time, fast response speed, higher fuel efficiency, and more energy-saving.
High Reliability: The mast adopts a box structure with solid resistance to torsion and fatigue; the sixth-generation Kelly bar adopts upgraded material and strengthened block ring; the overall strength increased by 25% with high drilling ability in the strongly weathered rock layer.
Intelligent Upgrade: 10-inch HD touch screen, fast response, and more convenient operation.

Parameters-

Base Engine: Mitsubishi D06FRC-TAA
Engine Power: 147/2100kW/rpm
Emission Regulation: China Stage Ⅲ
Rated Speed: 5~35rpm
Rated Output Torque: 155kN·m
Max. Pile Diameter: 1500mm
Max. Pile Depth: 55/44m
Crowd Force: 155kN
Stroke: 4200mm
Line Pull: 160kN
Overall Height: 18600mm
Operating Weight: 48T
Transport Width: 3100mm
Transport Height: 3265mm
Lifting Capacity: 160kN
Max. Line Speed: 80m/min
Rope Diameter: 26mm

Request for quote: +971525384269
