purchase now 2025 sinoboom ab22j plus articulated boom lift - | رأس الخيمة

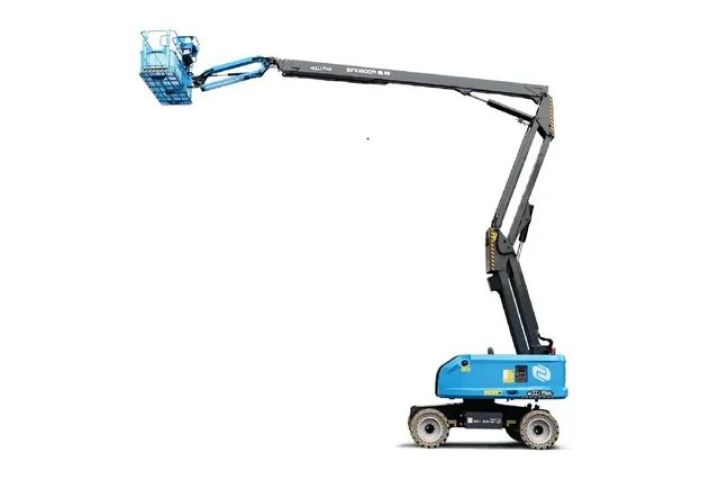

The Sinoboom AB22J Plus articulated boom lift provides outstanding versatility and efficiency, capable of handling heavy loads up to 454kg. It features an automatic load-sensitive performance adjustment system that ensures optimal operation in various working conditions. With its 4-wheel AC drive, this lift offers dependable climbing ability on outdoor slopes with up to 40% gradeability. The continuous 360° turntable rotation combined with active oscillating axles improves maneuverability on uneven terrain. Designed for adaptability, it effortlessly moves around obstacles while maintaining safety through enhanced stability, a built-in fault diagnosis system, and precise control mechanisms for secure and effective use in tough environments.
Highlights
Compact and Agile Design
All-Terrain Versatility
Safe, Advanced, Easy to Operatel

Technical specification
Reference Number: AMH268
Operating weight (kg): 12,000 Kg
Engine Output: 36 kW
Max Number of Operators: 3
Working Height: 23.6 m
Platform Capacity: 454 kg
Telematics: Available
Max Horizontal Extension: 13.35 m
Power: Diesel
Drive × Steer: 4WD x 2WS (4WS）
Turntable Rotation: 360°/Continuous
Gradeability: 40%

Features
Proportional control with 3 joysticks
Continuous 360° turntable rotation
Active oscillating function
Four-wheel steering - four-wheel brake
Weighing system and automotive sleeves for all pipes
AC power line to the platform
7-in smart screen and voice broadcast

Price: AED 163000
Request for quote: +971525384269
