special discount 2025 sinoboom ab22j plus articulated boom lift - | جبل علي

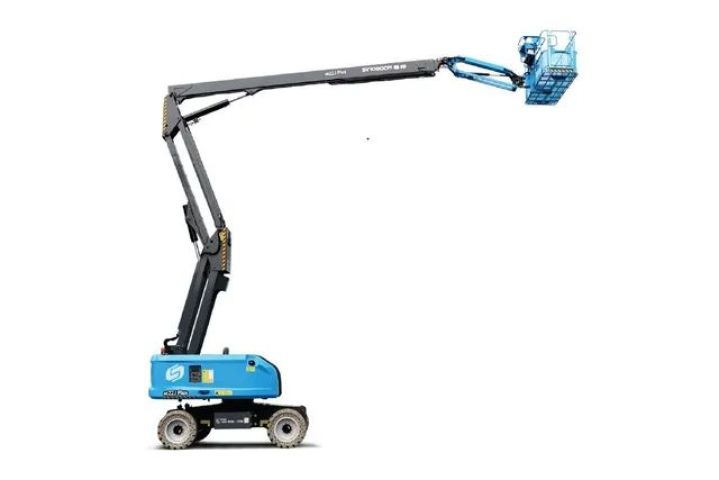

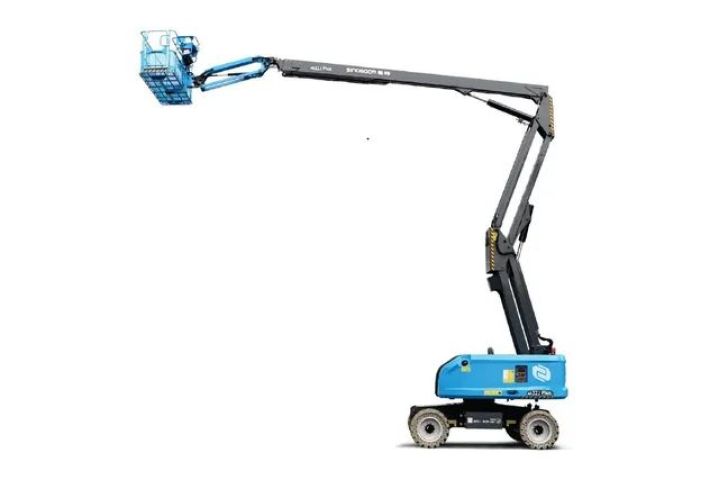

With a heavy-duty capacity of 454kg, the Sinoboom AB22J Plus articulated boom lift delivers high adaptability and efficiency. Its automatic adjustment to load conditions optimizes performance. The 4-wheel AC drive ensures dependable outdoor climbing on inclines up to 40%, while continuous 360° turntable rotation and active oscillation provide excellent maneuvering on rugged surfaces. Built for flexibility, it easily overcomes obstacles and features enhanced stability, a fault diagnosis system, and precise controls to ensure safe and effective operation in challenging settings.
Highlights
Compact and Agile Design
All-Terrain Versatility
Safe, Advanced, Easy to Operatel

Technical specification
Reference Number: AMH268
Operating weight (kg): 12,000 Kg
Engine Output: 36 kW
Max Number of Operators: 3
Working Height: 23.6 m
Platform Capacity: 454 kg
Telematics: Available
Max Horizontal Extension: 13.35 m
Power: Diesel
Drive × Steer: 4WD x 2WS (4WS）
Turntable Rotation: 360°/Continuous
Gradeability: 40%

Features
Proportional control with 3 joysticks
Continuous 360° turntable rotation
Active oscillating function
Four-wheel steering - four-wheel brake
Weighing system and automotive sleeves for all pipes
AC power line to the platform
7-in smart screen and voice broadcast

Price: AED 163000
Request for quote: +971525384269
